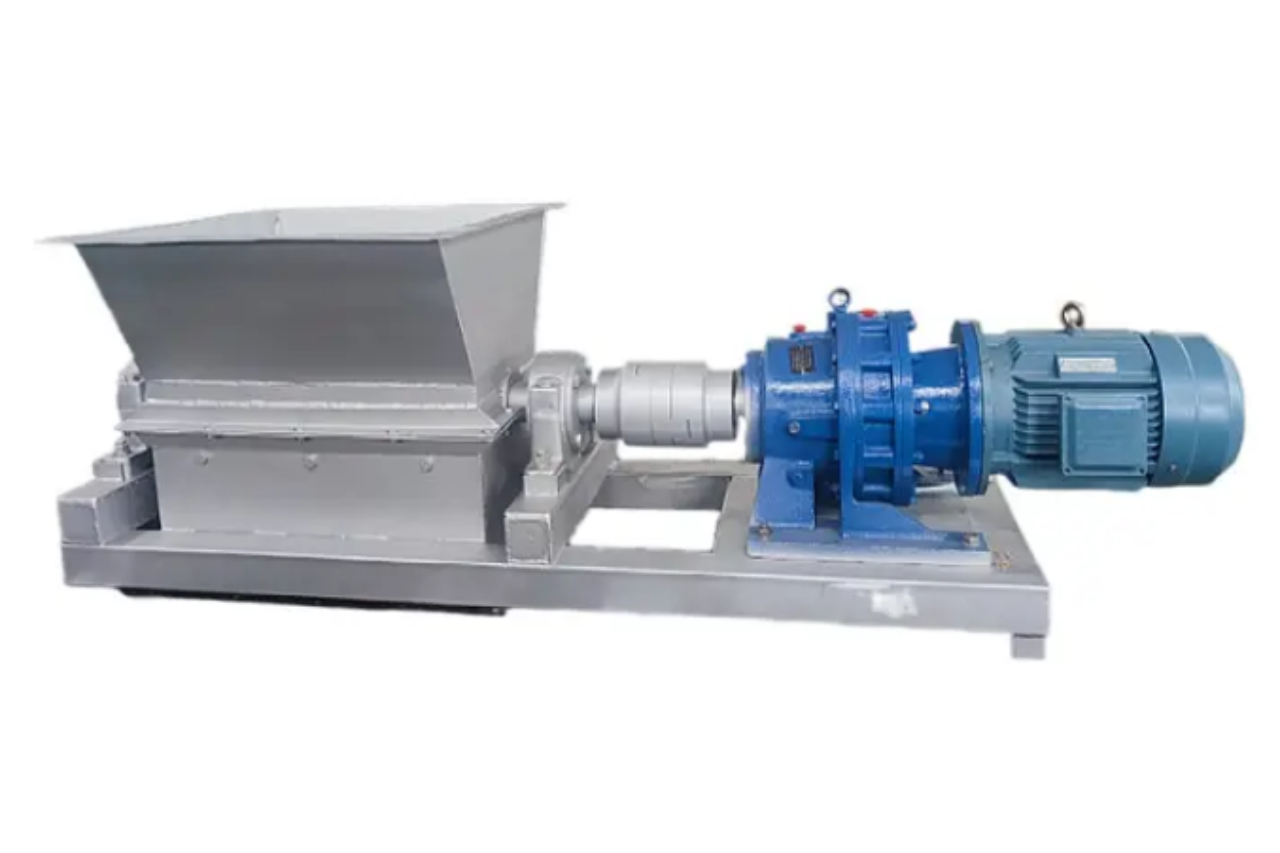

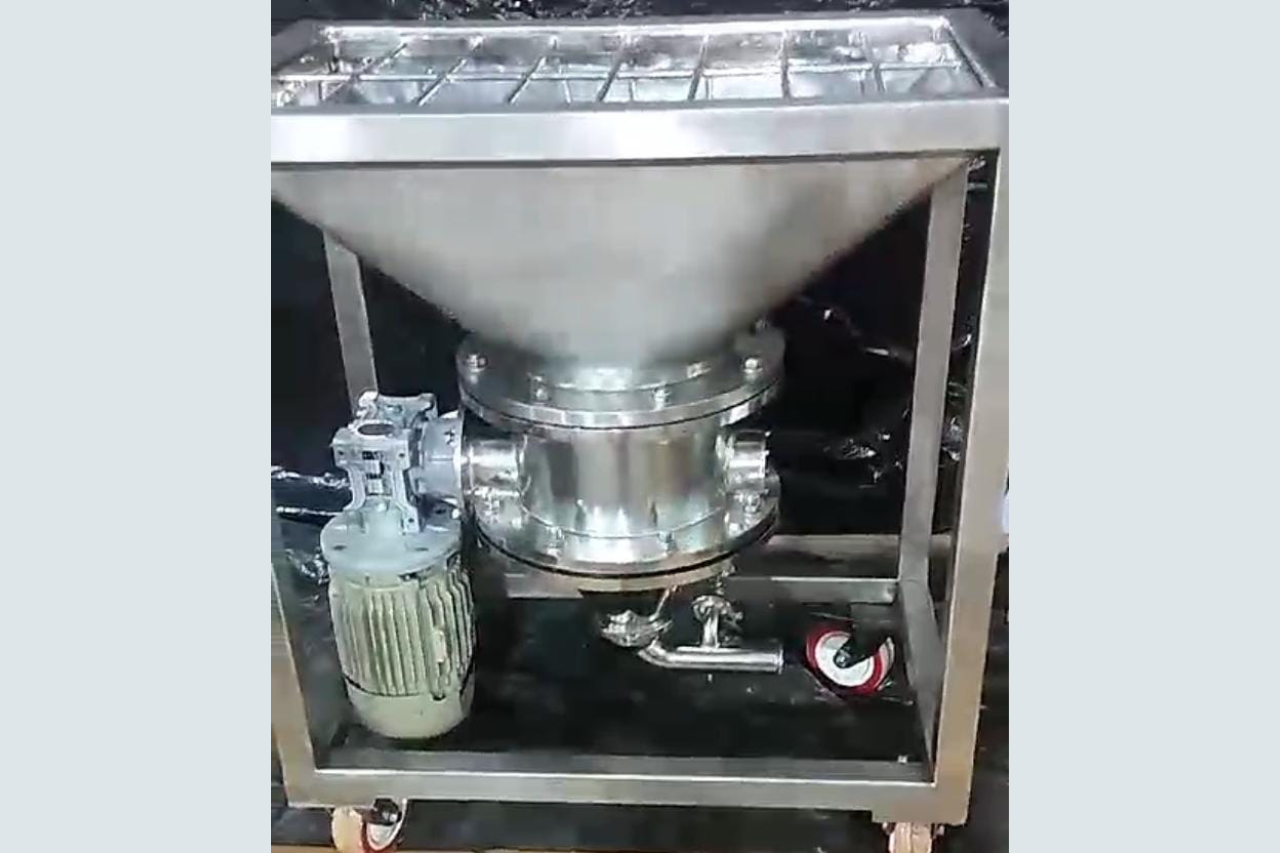

Lump Breaker
Main features
- Fast size reduction of lumps or agglomerates
- Product size: 0.5-20 mm
- Process capacity: 80-1500 kg/h
- Product particle size is adjustable by changing sieves
- Customizable options include side hatches, loading hoppers, and floor stands
Working principle

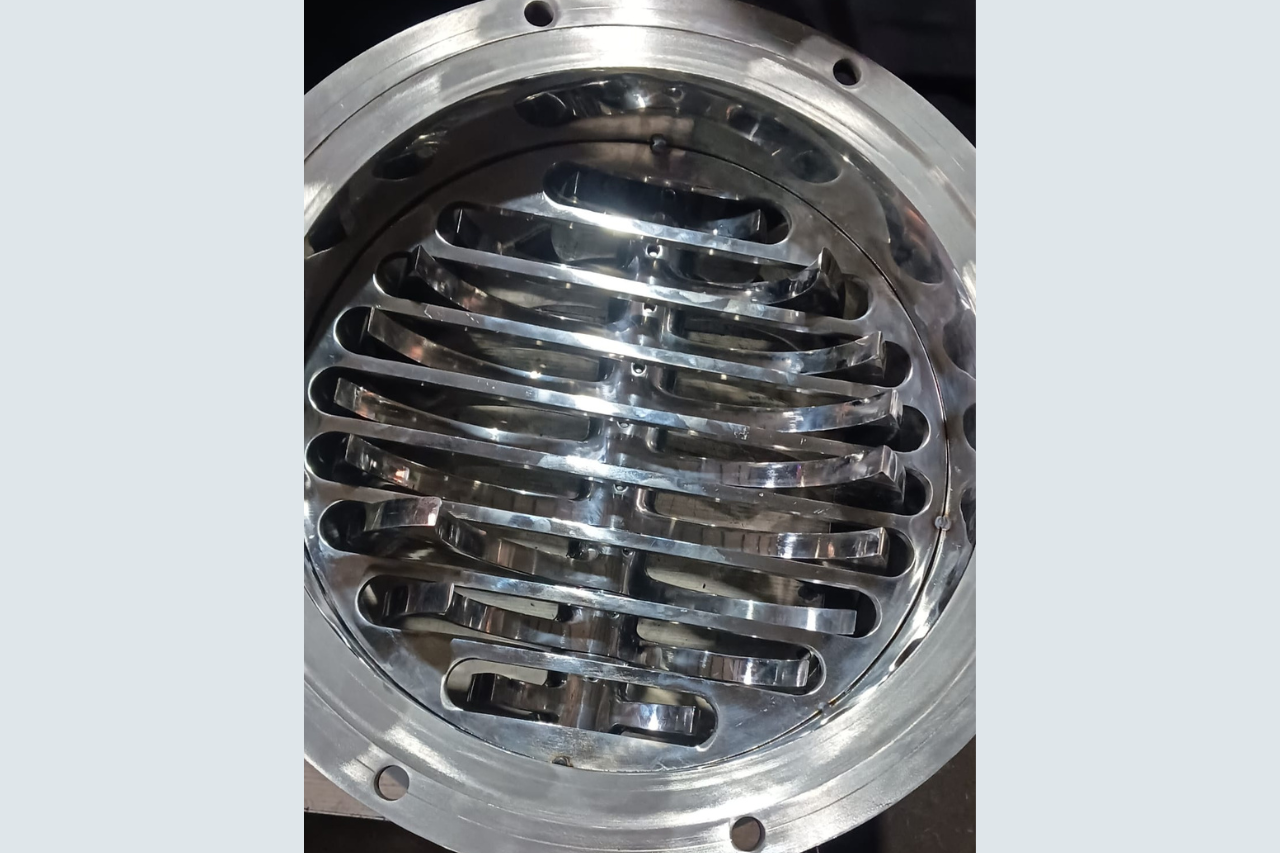

LB Series Lump Breaker offers high-capacity size reduction with a compact, low-power, easy-clean design. A rotating beater assembly grates material through a perforated screen, eliminating agglomerates for higher-quality output. This size reduction equipment offers consistent particle size within a narrow band while minimizing the generation of dust and fines. Various mesh sizes are available to suit a wide range of applications, including reducing particle size before or after mixing, intermediate sizing of product for improved drying and granulation prior to tableting, regrinding out-of-spec material for reclaim, pre-grinding prior to a secondary fine milling process, or accelerating dissolution in liquid reactors.
Technical advantages
- Robust,simple and compact design requires minimum maintenance;
- Available in materials and configurations to meet food and industrial safety and sanitary standards
- Alloy steel cutting knives.
- Very easy and convenient for cleaning, changing sieve and cutting knives.
- Different particle size can be achieved by changing sieve.
- Customizable options include side hatches, loading hoppers, and floor stands
- Available in materials and configurations to meet food and industrial safety and sanitary standards
Main technical parameters
| Model | LB-100 | LB-250 | LB-400 | LB-500 |
|---|---|---|---|---|
| Capacity (kg/h) | 50-100 | 100-300 | 300-600 | 600-1200 |
| Feed size (mm) | ≤50 | ≤100 | ≤200 | ≤300 |
| Product size (mm) | 0.5-20 | 0.5-20 | 0.5-20 | 0.5-20 |
| Rotating speed (RPM) | 192 | 192 | 192 | 192 |
| Motor power (HP) | 2 | 3 | 5.5 | 7 |
| Dimension LxWxH (mm) | 400x250x300 | 500x350x400 | 900x500x500 | 1000x600x500 |
| Weight (KG) | 100 | 200 | 300 | 500 |
