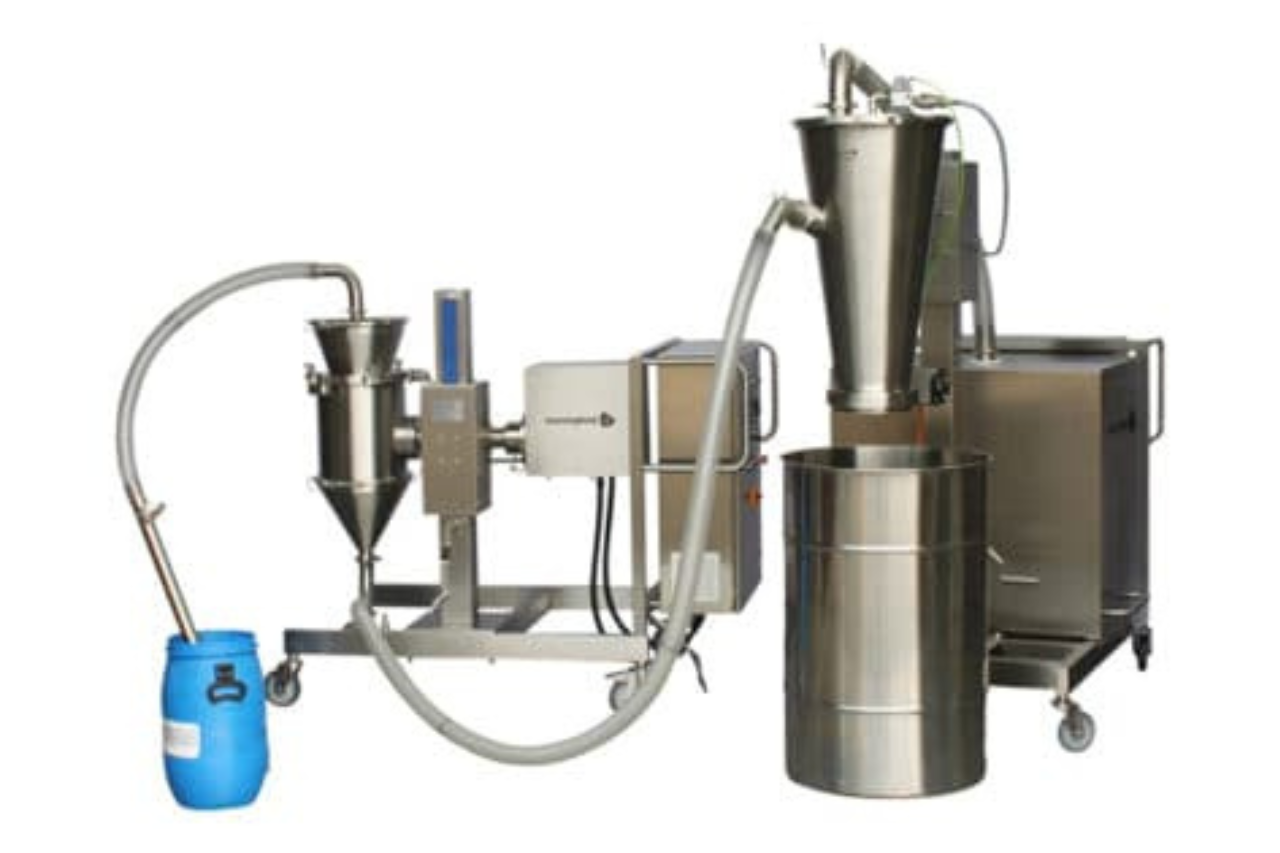

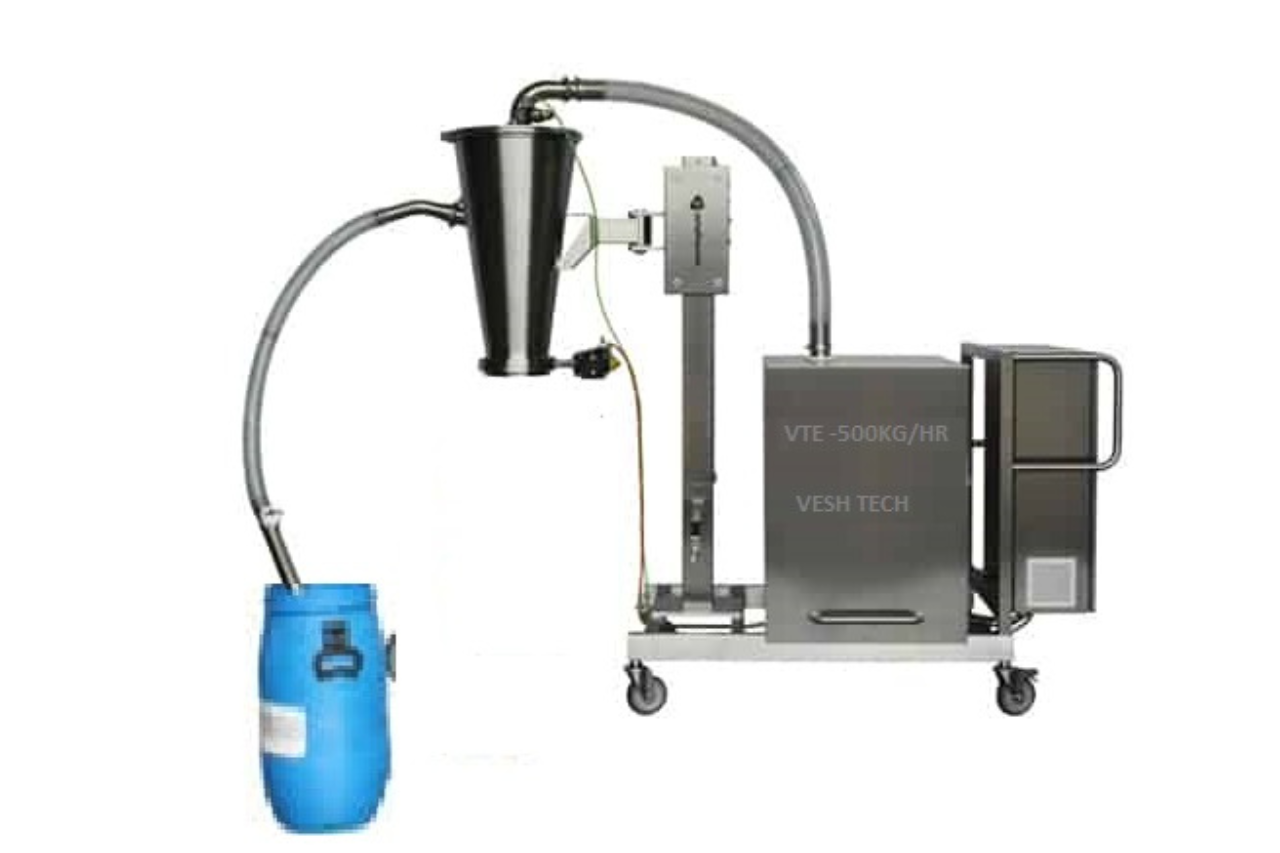

Vacuum Transfer Systems
The Vacuum transfer system is unique dry material transfer system for dust free and avoid to human touch. The vacuum transfer system is used in Pharmaceutical, Food, Agro Chemical, Sugar Industries and chemical. The system is use full for inline milling, sifting, blending, loading and unloading.
The principle of vacuum transfer has been proven to be a better way to move many types of material and a giant step over manual handling. The technology exists for moving virtually any material that can be pulled through a hose or tube. The system is consisting of Blower, Vacuum receiver system with filter, cyclone filter and Pipe.
Glove boxes find applications in various fields, including chemistry, pharmaceuticals, nanotechnology, electronics, and nuclear research. They are particularly useful when working with hazardous substances, sensitive materials, or processes that require protection from contamination
Features
- Check sieving becomes a part of the completely enclosed material transfer operation, rather than a separately performed function.
- Vacuum conveying system draws material into the chamber above the vibrating screen, through the screen and out to the next element in the conveying system.
- Action on the screen can be viewed through the transparent cover.
- Foreign objects remain on the screen and can be removed by unclamping the cover or inserting a vacuum probe into an access port above the screen.
- All Material contacts parts are 304 or 316L stainless steel and are easily disassembled for cleaning by releasing quick-acting clamps.
- Other process operations, such as milling, can be performed in the same clean, efficient conveying cycle.
- Gyratory action easily adjustable for different materials and meshes.
The rate at which material can be conveyed through a vacuum conveying system using an sieve will vary depending upon the characteristics of the material. Many systems are operating at rates up to 4 tons per hour and higher rates are being achieved in some instances. Samples of your material can be run in VTS Test Lab to determine practical throughput rates.
Specifications
- Decks: Single with quick release clamps for easy cleaning
- Suspension: Rubber, Long Life anti-vibration mounts
- Vibrators: Independent, with massive long life bearings and high centrifugal force twin weights that are adjustable for amplitude
- Motor: 2HP, 3HP, 5HP TEFC, 230/380, 3 phases, 60 HZ, 1750 RPM.
